WEB BASED PROFILER ver 0.1.2

Name of Rocket:

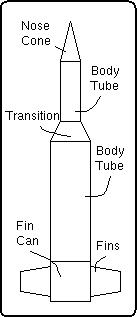

Select Nose Cone Type: Conic Elliptic Ogive Parabolic

Offset of Nose from Tip of Rocket (zero)
Length of Nose Cone
Diameter of Nose Cone

Offset of Body Tube from Tip of Nose Cone
Length of Body Tube
Diameter of Body Tube

Offset: Tip of Nose Cone to Front of Transition
Length of Transition (Lval = 0 deletes feature)
Diameter at Front of Transition
Diameter at Back of Transition

Offset of Body Tube from Tip of Nose Cone
Length of Body Tube Less the Fin Canister Tube
Diameter of Body Tube

Select Fin Type: Polygon Elliptic Parabolic
Select Number of Fins: 3 4
Distance of Fin Canister From Tip of Nose Cone
Length of Fin Canister
Diameter of Body Tube at Front of Fin Canister
Diameter of Body Tube at Rear of Fin Canister
Thickness of Fin
Number of Edges on Fins (include Root)
Fin Coordinate Help
NOTE: Once Number of Edges on Fins are submitted you will be given this same form with that number of vertices Z,R coordinate boxes!
